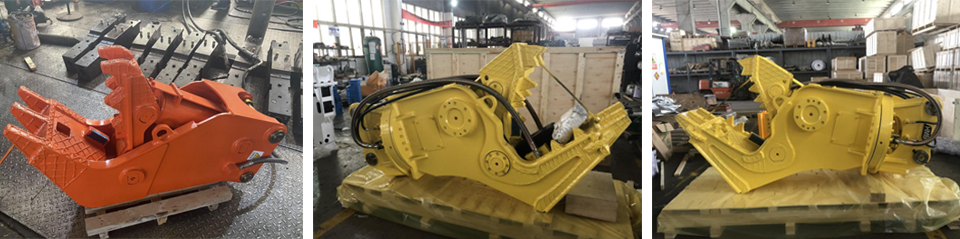

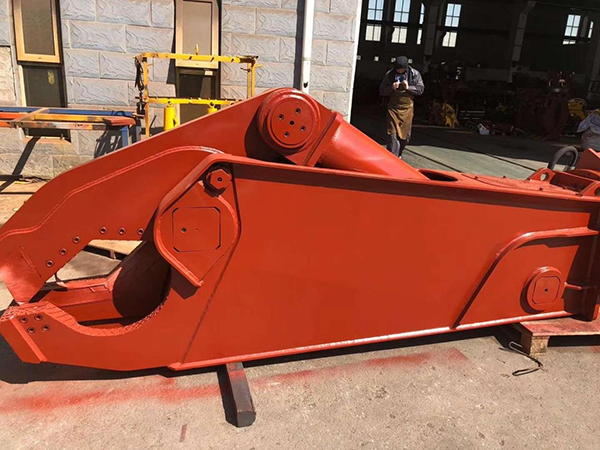

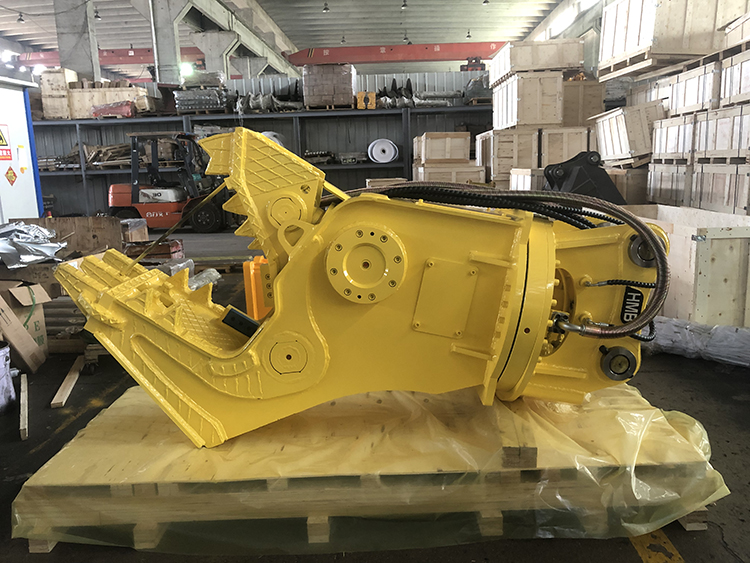

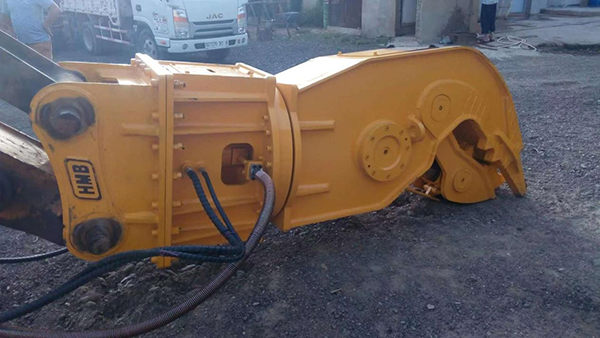

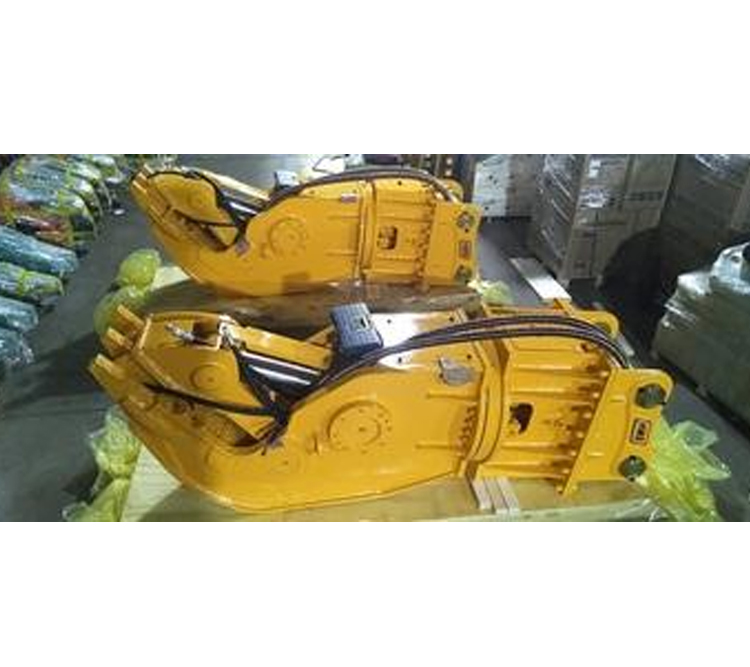

hydraulic pulverizer

  • Product Classification: hydraulic pulverizer
  • Definition: The hydraulic pulverizer is the best tool specially designed for crushing concrete.
  • Contact Us Now
Product Details
Product inquiry

Specification As one of the leading hydraulic pulverizer manufacturers in China, HMB has a full range of hydraulic pulverizer for excavators from 6-80 ton. They are suitable for all kinds of brands and models of excavators.


Please Choose the right model according to your needs

Model

Unit

HMB400

HMB600

HMB800

HMB1000

HMB1700

Total length

mm

1642

1895

2168

2218

3150

Total width

mm

1006

1275

1376

1598

2100

Blade length

mm

120

150

180

200

240

Max Opening Height

mm

587

718

890

1029

1400

Upper Jaw Width

mm

215

280

290

380

400

Lower Jaw Width

mm

458

586

588

720

812

Max Shear Force

kn

380

650

1650

2250

2503

Working Pressure

Bar

280

320

320

320

320

Weight

kg

670

1350

1750

2750

4709

For Excavator Weight

ton

6-9

10-15

18-26

26-30

50-80


Application
it is ideal for breaking out concrete ,pulverizing concrete,separating different materials for recycling,and cutting reinforced rods and small steel profile.

products video


Features of hydraulic pulverizer
•  Pulverizing tooth
On the outer end of jaw for high productivity during pulverizing job.
•  Trunnion type cylinder
For maximum breakout force throughout jaw-closing motion as opening motion.
•  Reversible rectangular blades For lower maintenance cost.
•  Hardened teeth
High spec. materials for enhanced durability.



Why choose us?
1 one of top hydraulic pulverizer manufacturers in China, 12 years' experience
2.more than 40 skilled workers.
3.QC team, pass ISO and CE certificate.
4.long warranty
5. customization service is available.


Service&warrantly
1. One-stop service, producing all kinds of hydraulic hammers and excavator accessories, such as quick hooks, grabs, compactors, augers, rippers, etc...
2. Provide free customized services. We have a professional design team to meet any of your requirements. At the same time, we can provide intimate pre-sales and after-sales services.
3. Sign a confidentiality agreement regarding product information.
4. The product will be tested before leaving the factory.
5. Fast delivery service
6.We provide free replacement and maintenance services within one year.
