quick hitch
Specification

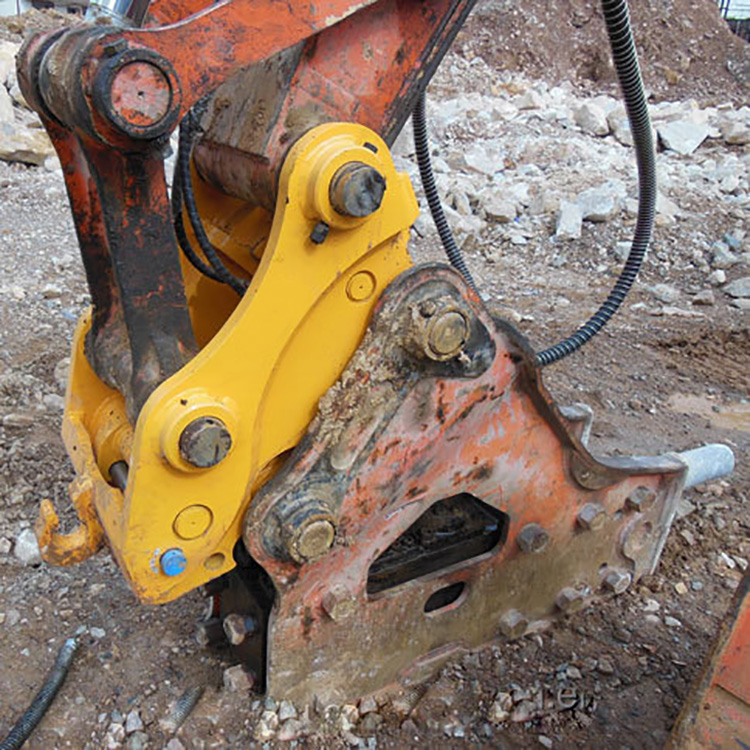

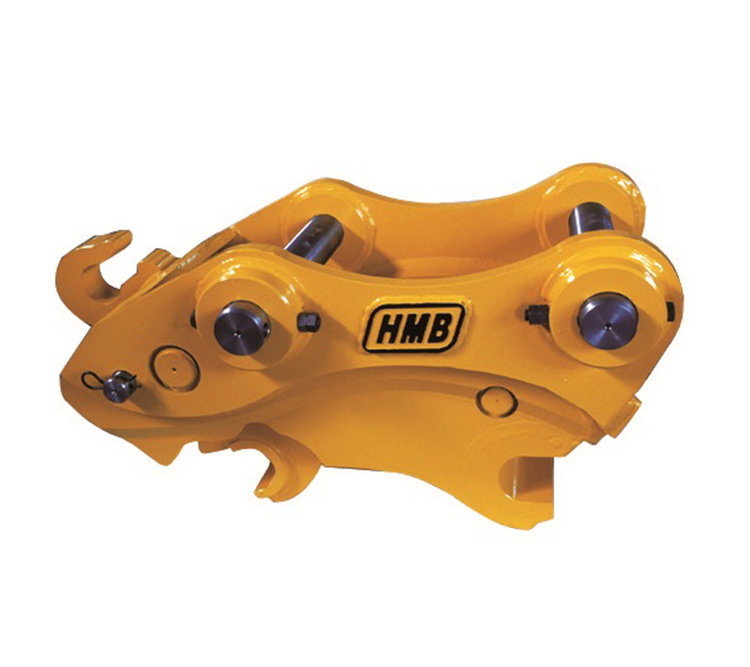

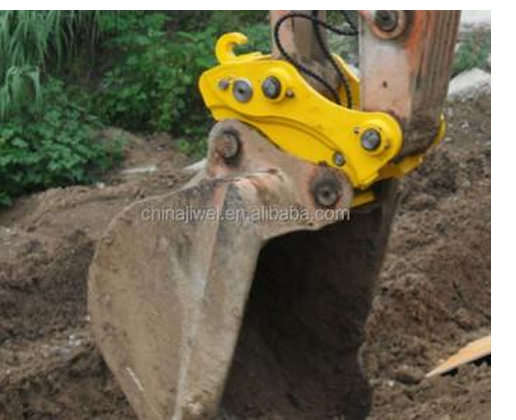

HMB QUICK HITCH ,QUICK COUPLER/EXCAVATOR QUICK COUPLER can quickly connect various attachments on excavators,it saves time and improve s working efficiency.
Advantages
1.Best quality Q345B material
2.h lower cost.
3.Easy installation.
4.Please check the table to choose the right Quick Coupler model.
|
Model |
Unit |
HMB Mini |
HMB02 |
HMB04 |
HMB06 |
HMB08 |
HMB08S |
HMB10 |
HMB17 |
HMB20 |
|
Operating Weight |
KG |
30-40 |
50-75 |
80-110 |
170-210 |
350-390 |
370-410 |
410-520 |
550-750 |
700-1000 |
|
Overall Length(C) |
MM |
300-450 |
520-542 |
581-610 |
760 |
920-955 |
950-1000 |
965-1100 |
1005-1150 |
1250-1400 |
|
Overall Height(G) |
MM |
225-270 |
312 |
318 |
400 |
512 |
512-540 |
585 |
560-615 |
685-780 |
|
Overall Width(B) |
MM |
150-250 |
260-266 |
265-283 |
351-454 |
450-483 |
445-493 |
543-572 |
602-666 |
650-760 |
|
Forearm open Width(A) |
MM |
82-180 |
155-172 |
180-205 |
230-317 |
290-345 |
300-350 |
345-425 |
380-480 |
420-520 |
|
Retractable distance of oil cylinder(E) |
MM |
95-200 |
200-300 |
300-350 |
340-440 |
420-510 |
450-530 |
460-560 |
560-650 |
640-700 |
|
Pin Diameter |
MM |
20-40 |
40-45 |
45-55 |
50-70 |
70-90 |
90 |
90-100 |
100-110 |
100-140 |
|
Top to bottom pin distance(F) |
MM |
170-190 |
200-210 |
205-220 |
240-255 |
300 |
320 |
350-370 |
370-380 |
400-500 |
|
Pin to Pin Center Distance(D) |
MM |
95-220 |
220-275 |
290-350 |
350-400 |
430-480 |
450-505 |
485-530 |
520-630 |
620-750 |
|
Working Pressure |
Kg/c㎡ |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
|
Oil Flow |
L/min |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
|
Carrier Weight |
ton |
1-4 |
4-6 |
6-8 |
9-16 |
17-25 |
24-26 |
25-33 |
33-45 |
40-90 |
Features
1.one year warranty;
2. best quality Q345B materials,USA-made solenoid valve;
3. Germany-made oil seals
4. Original Japan-made switch;
5.Strong safety pin at accurate position
products videos
Why do we need quick hitch for excavators?
1. Scenarios that require frequent replacement of excavator accessories in a short period of time can be quickly operated.
2. Time-saving, labor-saving, simple and convenient to get started.

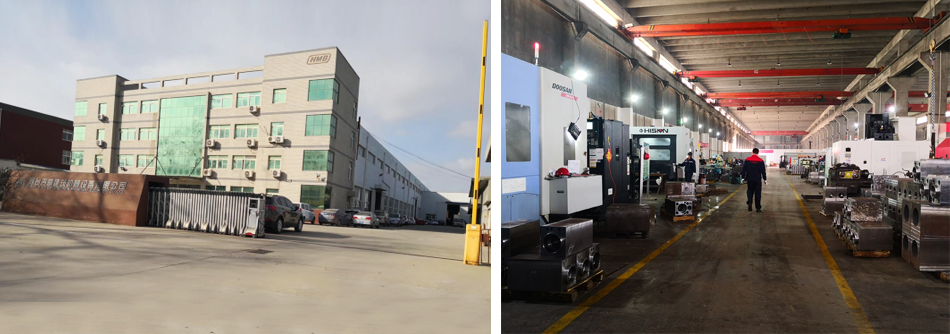

company information
With first-class materials, first-class technology, first-class team, and one-stop service, Jiwei has managed to save costs for customers while maintaining high quality. HMB breakers are extremely powerful and powerful, and can crush objects instantly. When buying hydraulic breakers, HMB is the first choice. Yantai Jiwei carefully prepares each breaker and produces it in strict accordance with international standards to achieve a good reputation. Facts have proved that Jiwei is the preferred supplier.
Why choose us ？
1. one of top quick hitch manufacturers in China, 12 years' experience
2.more than 40 skilled workers.
3.QC team, pass ISO and CE certificate.
4.long warranty
5. customization service is available.

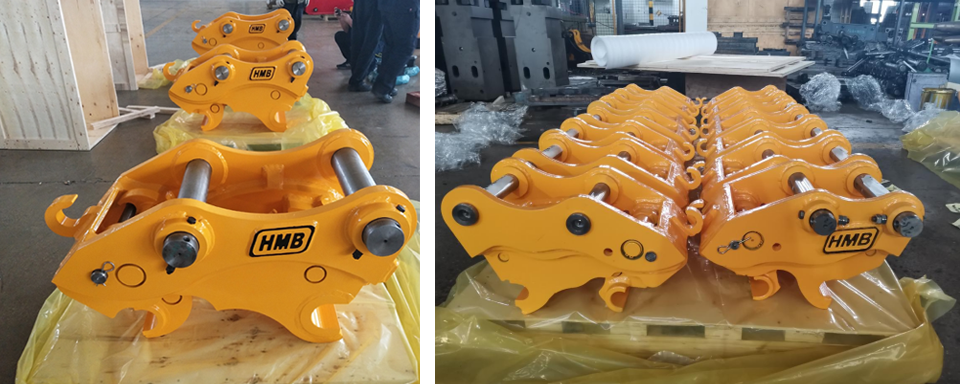

Packaged goods
Service&warrantly
1. One-stop service, producing all kinds of hydraulic hammers and excavator accessories, such as quick hooks, grabs, compactors, augers, rippers, etc...
2. Provide free customized services. We have a professional design team to meet any of your requirements. At the same time, we can provide intimate pre-sales and after-sales services.
3. Sign a confidentiality agreement regarding product information.
4. The product will be tested before leaving the factory.
5. Fast delivery service
6. We provide free replacement and maintenance services within one year.
